Mini600

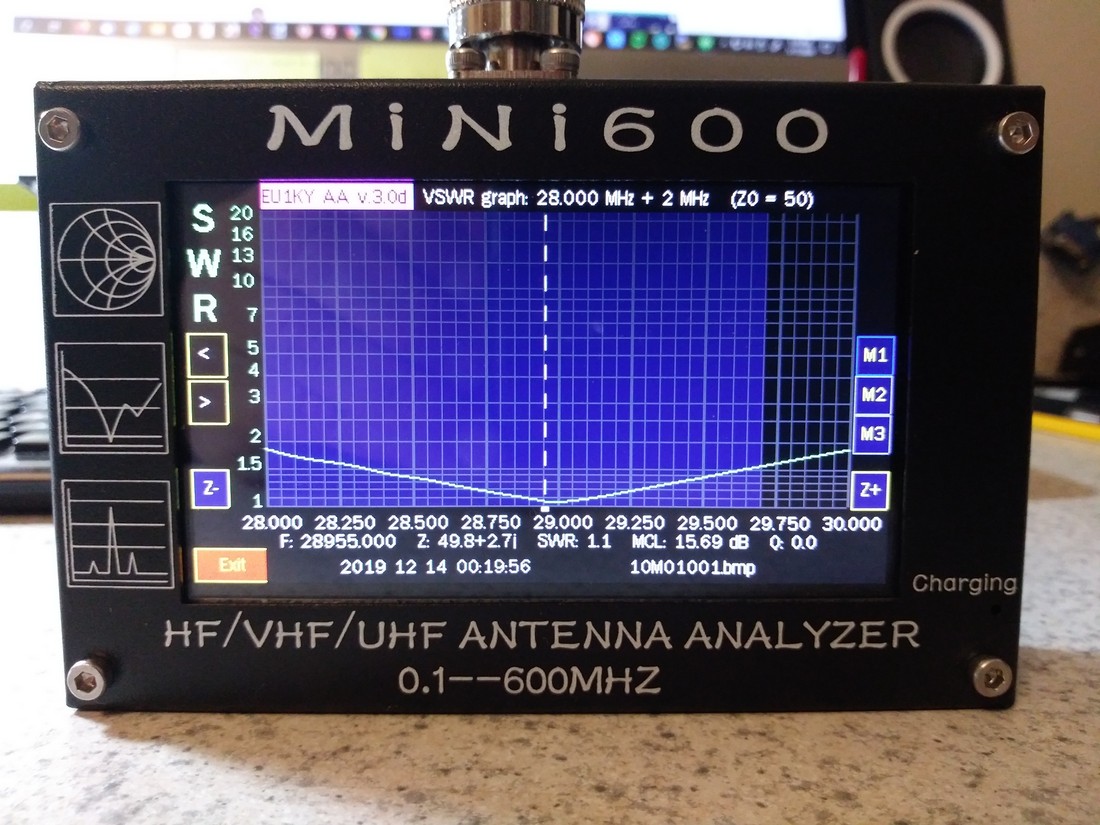

Mini600 Antenna Analyzer

The Mini600 Antenna analyzer is a pretty cool device! The creation is the hard work of a fellow Ham; EU1KY.

The Mini600 comes with version 1.4 (.500 mhz - 600 mhz) but, can easily upgrade to ver. 3 (.500 mhz - 1.5 ghz).

The Mini600 Antenna Analyzer is based on the original version (FAA-450) and is an open source project built from the STM32-F7 Discovery board. While, the FAA-450 version is the Europian version and comes with no battery, The Mini600 is produced in the US and comes with a LiPo batery built in. As with any device containing a LiPo battery, never charge unit, unattended!

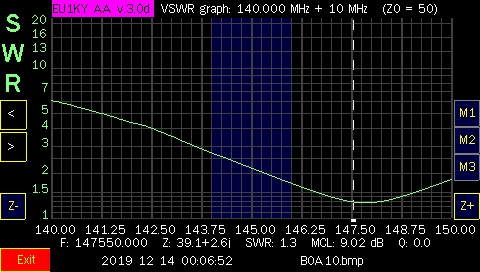

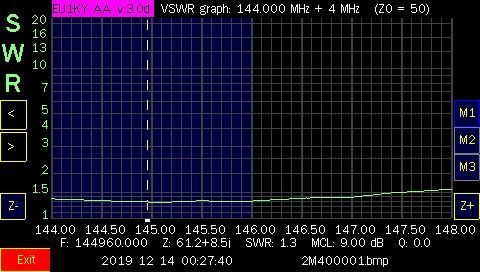

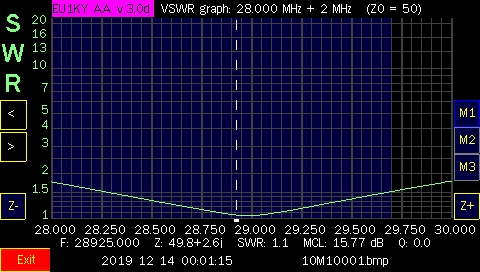

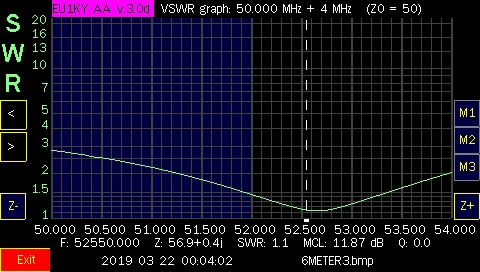

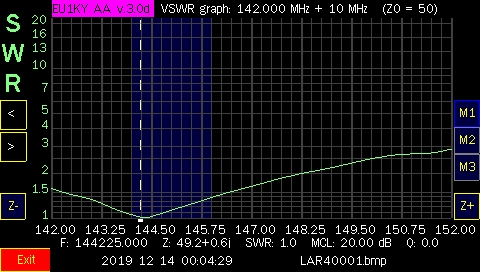

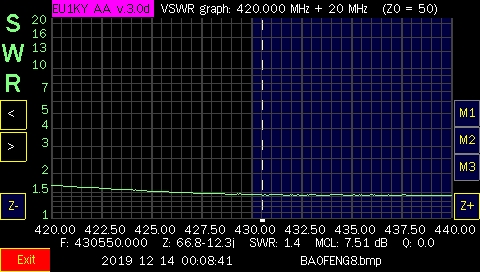

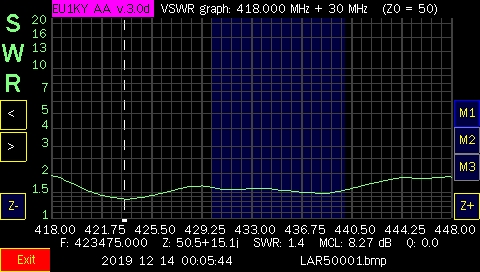

Features a BIG COLOR TFT LCD, CAPACITIVE TOUCHSCREEN, HF/VHF/UHF frequency coverage, built-in TDR function, and multiple scanning curves with SWR. These features outperform many expensive antenna analyzers present on the market.

The analyzer utilizes DSP technology to analyze the sampled and lower converted (10KHz) V & I signal and derive their magnitude ratio and phase difference. The calibrated, measured results are very accurated for amateur radio purposes. So, an Open-Short-Load calibration is required to compensate transmission line influence on measured parameters before the final usage.

FEATURES:

Built-in Li-ion charging circuitry and DC-DC booster
Comes with an N-type connector
Comes with a set of Open-Short-Load calibration kit
All capacitive touchscreen on the display – no buttons are needed
Settings and calibration files could be saved on the TF card
HF/VHF/UHF contiunous coverage
Big and fast 480×272 4.3″ TFT LCD display
PC USB connection is supported for remote measurement

Specification:

Frequency Range: .500 mhz - 1.5 ghz with Ver. 3 upgrade
In/Out Impedance: 50
Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss
Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode
SWR MeasureMent Range: 1.0-1999（Single Point Mode), 1.0-20.0 (Scan Mode)

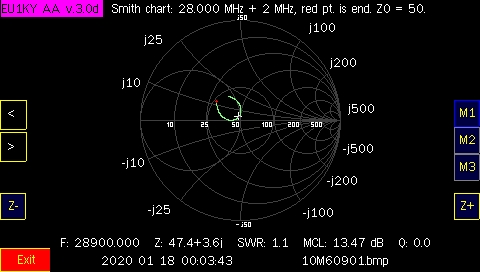

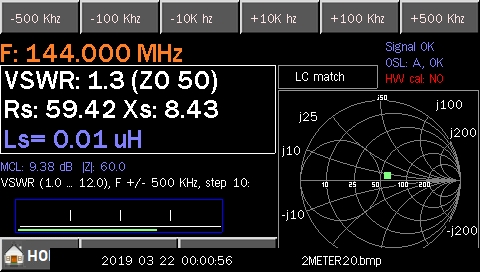

Display Modes: Numerical display, curve display, simith chart
Connector Type: UHF N-type connector
LCD size: TFT 4.3″
Touch Screen Type: Capacitive
Power Source: USB or Internal 18650 LiPo
External Storage Method: TF card
Dimensions: 163·92·37.5 mm (6.42″·3.62″·1.48″)
Weight: 535g (1.18 lbs)
